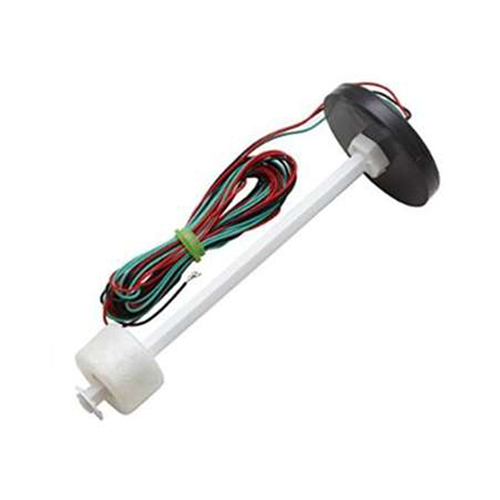

Magnetic Float Sensor

Name: Magnetic Float Sensor
Brand: Sadhna Enterprises
Price: 250.0 INR
Availability: InStock

Price 250.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Magnetic Float Sensor Specification

Theory
Optical Sensor, Current Sensor

Float material
Plastic

Output type
Switching

Cable length
Approx 1 meter

Contact form
NO+NC

Stem length
200 mm

Model Name/Number
FS-116 WTF

Mount type
Top mount

Process connection
3/4 inch BSP

Max pressure
10 bar

Sensor type
Level float sensor

Usage/Application
Home

Max temp
100 C

Wiring
Three wire

Current Rating
5A

Magnetic Float Sensor Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About Magnetic Float Sensor

A Magnetic Float Sensor (also known as a Magnetic Float Level Switch) is a reliable liquid level sensing device used to detect and control the level of liquids in tanks, reservoirs, and industrial vessels. It operates using a permanent magnet housed inside a floating element and a reed switch sealed within the sensor stem.

As the liquid level rises or falls, the float moves accordingly. When the magnet inside the float reaches the reed switch, it changes the switch state (Normally Open or Normally Closed), generating an electrical signal for monitoring, alarms, or automatic pump and valve control.

Exceptional Features & Wide Usage of FS-116 WTF Sensor With Accessories

FS-116 WTF Sensor With Accessories boasts premium features such as a NO+NC contact form, sturdy 200 mm stem length, and versatile top mounting. Designed for home use, this level float sensor provides accurate and efficient liquid monitoring. Its robust plastic float, 5A current rating, and 3/4 inch BSP process connection ensure seamless fitting and operation. Suitable for homes and industrial applications alike, this sensor is ideal for switching operations where reliability is paramount.

Shipment, Packing & Dispatch for FS-116 WTF Sensor With Accessories

Quotations for the FS-116 WTF Sensor With Accessories are provided upon request. The main domestic market is India, with convenient delivery times tailored to your requirements. The shipment is promptly initiated after confirmed orders, ensuring secure packing and careful dispatch for optimal safety during transit. The FOB Port options enhance flexibility, providing excellent logistics for every client. Highly recommended for those who value timely and reliable delivery.

FAQ's of FS-116 WTF Sensor With Accessories:

Q: How does the FS-116 WTF Sensor With Accessories work?

A: The FS-116 WTF Sensor With Accessories operates as a level float sensor, utilizing a float that moves with the liquid surface. When certain liquid levels are detected, it triggers the internal contact form (NO+NC), sending a switching signal for monitoring or control purposes.

Q: What applications is the FS-116 WTF Sensor With Accessories best suited for?

A: This sensor is highly recommended for home applications where precise liquid level monitoring and switching operations are necessary. It's also suitable for industrial uses thanks to its sturdy plastic float, reliable contact rating, and adaptable mounting design.

Q: When should I install the FS-116 WTF Sensor With Accessories?

A: Install the FS-116 WTF Sensor With Accessories during the setup or maintenance of liquid containment systems, particularly when you require reliable monitoring and control of water or compatible fluids within a tank or vessel.

Q: Where can the FS-116 WTF Sensor With Accessories be mounted?

A: This sensor is designed specifically for top mounting (vertical installation) on tanks or containers, utilizing its 3/4 inch BSP process connection for secure attachment.

Q: What are the benefits of using the FS-116 WTF Sensor With Accessories?

A: The major benefits include precise level detection, reliable NO+NC switching output, operation at up to 100C and across pressures up to 10 bar, as well as straightforward 3-wire installation. Its durable plastic construction ensures long service life and robust performance.

Q: How is the shipment and delivery process handled for this product?

A: After receiving a quotation and order confirmation, the FS-116 WTF Sensor With Accessories is carefully packed and dispatched from the specified FOB Port. Efficient shipment and delivery are prioritized for the Indian domestic market, with tailored timing to meet customer demands.
